AC to AC Solid State Relay					SSR
					Series
▇ Specification
Type	Terminal Type
Model	SSR-10AA	SSR-25AA	SSR-40AA	SSR-25AA-H	SSR-40AA-H
Rated Load Current	10A	25A	40A	25A	40A
Input Data
Operating Voltage	80~250VAC 50 / 60Hz
Min. ON / OFF Voltage	ON > 45V , OFF < 35V
Trigger Current	5.0mA / 110VAC     max.
Control Method	Zero Cross Trigger
Output Data
Operating Voltage	24~380VAC			90~480VAC
Min. Blocking Voltage	600 VAC < Repetitive >
Voltage Drop	1.6 V / 25°C
Response Time	ON < 20ms , OFF < 20ms
Max. Durated Current	135A	275A	410A	275A	410A
Leakage Current	3.0mA	5.0mA	3.0mA	5.0mA	5.0mA
General Data
Dielectric Strength	Over 2.5KVAC / 1min.
Isolation Strength	Over 50M Ω / 500VDC
Operating Temperature	-20°C ~+80°C
Housing Material	Intensive ABS
Weight	Appr. 110g

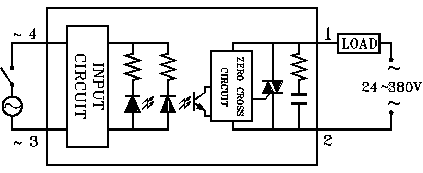

Connection Diagram
